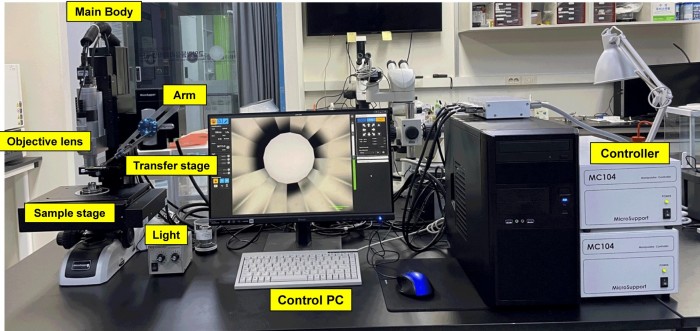

Micromanipulator
- 모델명
Rigaku MicroMax-007HF
- 주요기능
- DAC loading for high pressure experiments
- Precise cutting of samples
- Sample marking for SEM
- Isolation of μm-size particles for FT-IR, Raman and SEM
- Ex-situ FIB lift-out
제원(spec.)
Axis Pro APSS-304 |
|
제조사 |
Microsupport |
Total magnification |
89 ~ 2500x |
Electric microscope |
Mainbody zoom 0.9 ~ 10x Optical magnification 1.5 to 50x |
Left manipulator |
Stroke Right & Left 20 mm Back & |
Electric focus |
Stroke 70 mm Resolution 0.1 μm |
LED lighting |
Coax epi-illumination, Coax dia-illumination |
Input power |
AC100-240V 50/60Hz |
Objective lens |
5x working distance : 14 mm 1.5 working distance : 46 mm |
Sample stage |
Electric sample stage Stroke Right & Left 100 mm Back & Forth 50 mm Resolution 0.1 μm |
Electric transfer stage |
Stroke 80 mm Resolution 0.1 μm |
GigE camera |
1.4M pixels, Ethernet connection |
