Micro-XRF (X-ray Fluorescence)
- 모델명

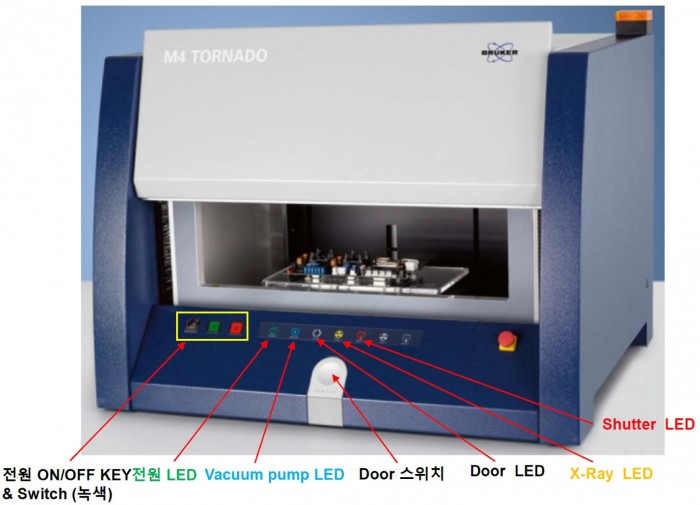

M4 TORNADO
- 주요기능
- The basis of X-ray fluorescence analysis is an excitation and relaxation process within the atomic electron shell.
- Point analysis / Multi-point analysis / Auto-point analysis / Line scan / Area analysis
제원(spec.)
Technical Specification of M4 Tornado |
|
1. Instrument cabinet |
|
W x D x H / mm |
Spectrometer : 815 x 680 x 580 |
Weight |
Spectrometer : ca. 130kg |
2. Connection values |
|
Voltage / Frequency |
Spectrometer w PC : 110-230 V AC / 50-60Hz Pump : 110 or 230 V AC / 50 or 60 Hz |
Power |
Spectrometer w PC : max, 500 W |
Pump : max. 500 W |
|
3. X-ray tube |
|
Manufacture |
Rtw Dr.Warrikhoff Rontgentechnik GmbH |
Type |
Ceramic side window fine focus tube with BE-window MCBM-50Rh |
Ma. excitation |
50 kV, 30 W |
X-ray optic |
Poly-cap lens with spot size down to 25 um |
4. Detector |
|
Manufacturer |
Bruker Nano GmbH |
Type |
SDD 5030 |
Energy resolution |
approx. 145 eV for Min-Ka |
Sensitive area |
30 mm2 |
5. Sample positioning |
|
Stage |
motorized X-Y-Z-stage |
Travel | 200 x 160 x 120 mm |
Max. speed | 200 mm/s |
